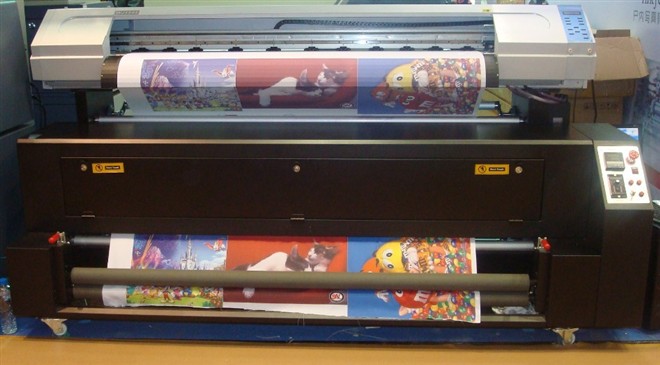

| Textile Printer-1800 |
|
|
| Product Model |
T1800 |
| Printing Technology |
The EPSON 5th Generation of Micro Piezo Technology |
| Number of Nozzles |
1440(1440 nozzles * 1 head) |
| Ink Colors |
4 colors:Cyan,Magenta,Yellow,Black |
| Printer HeadHeight |
Adjustable 2~5mm |
| Resolution |
1440dpi(Max) |
| Ink Droplet Size |
1.5~21 pl |
| Printing Width |
1.8M(Max) |
| Speed |
High Speed Mode:720x720dpi 24m2/hour |
| Standard Mode:720x1080dpi 12m2/hour |
| Photo Mode:720x1440dpi 9.5m2/hour |
| Drying System |
External fan |
| Media |
Width:1.80m(max media width) |
| Media Feeding Mode:Automatic feeder |
| Automatic take up (optional) |
| Self-adhesive paper,PVC,Mesh fabric,Textile,PVC flex banner,Self adhesive vinyl,Paper,,Leather and etc. |
| Ink |
ECO Solvent Ink |
| Water Based Dye Ink |
| Ink Supply Mode: Continuous ink supply |
| Ink Cartridge:8 * 220ml |
| RIP Sofware (optional) |
Maintop 5.0 / PhotoPrint 6.0 |
| Supported Image Format:TIFF,JPEG,PDF and other common image formats |
| PostScript file process(Optional) |
| Color Mode:RGB or CMYK |
| Control Software |
MAINTOP Control Software(Cn/En) |
| Interface |
USB 2.0,RS232 |
| Operating System |
Windows XP |
| Voltage |
AC 220-240V 50/60HZ or AC 110-120V 50/60HZ |
| Power Consumption |
Operational temperature:20-25℃ |
| |
Humidity:40~70% Non-condensing |
| Dimension |
Printer Dimension (W * D * H) 2,870 * 1450 * 1680mm (bracket included) |
| Packing Dimension(W * D * H):2,940 * 1550 * 1700mm(bracket included) |
| Weight |
Net Weight:650kg(bracket included) |
| Gross Weight:750kg |
